SPF Applications

• Photovoltaic
• Battery
• UPS
• EV charging stations

Photovoltaic systems by segments

The photovoltaic market is categorized by three segments which needs different protection of electric circuits.

• Residential (Rooftop)
• Commercial
• Utility

Photovoltaic: Residential and Commercial

Business led by small to medium-sized companies. Main customers:

•  Installers
• Wholesalers
• Panel builders

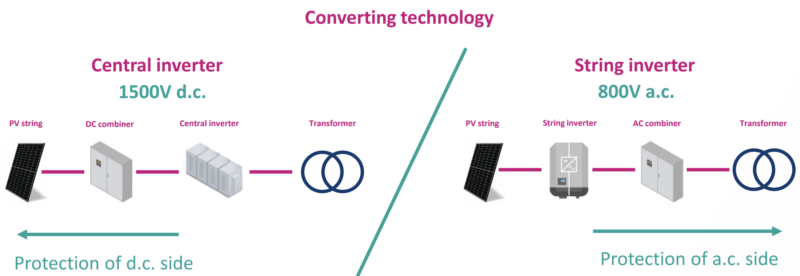

Photovoltaic: Utility-scale Systems

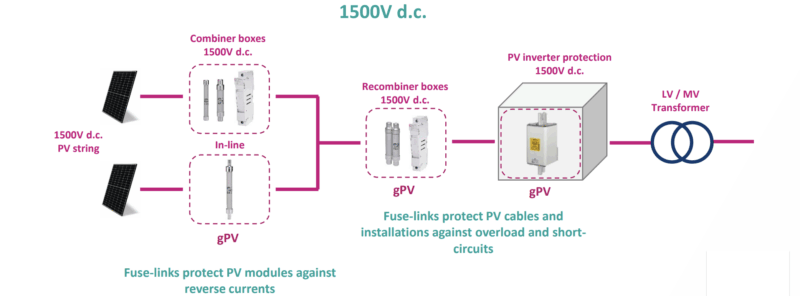

Photovoltaic: Central inverter System

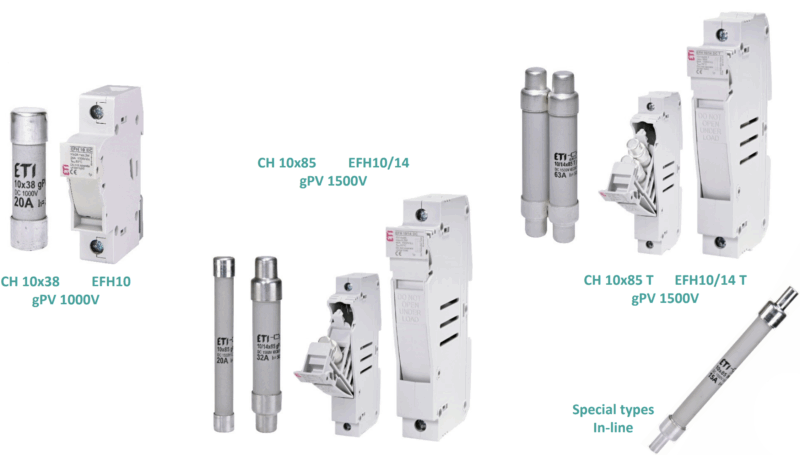

Cylindrical Fuse-links (UL Certified)

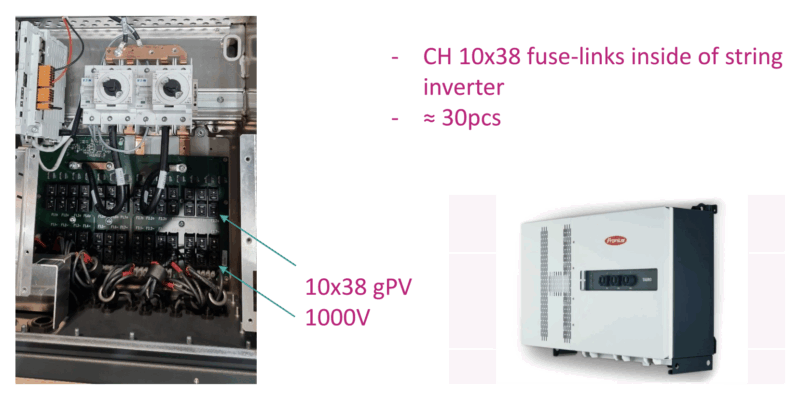

CH gPV: String inverters

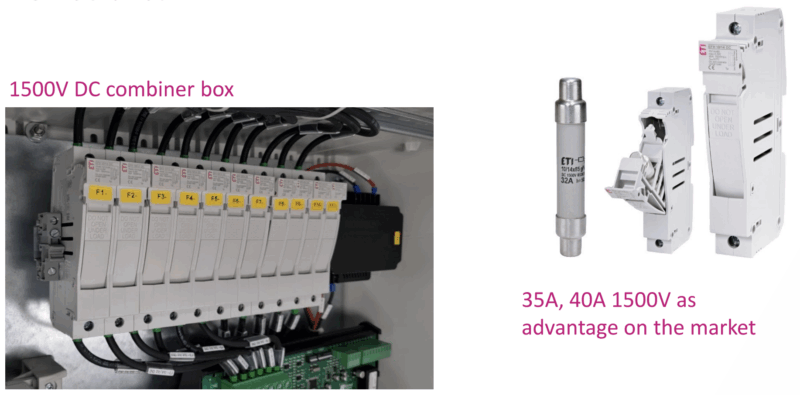

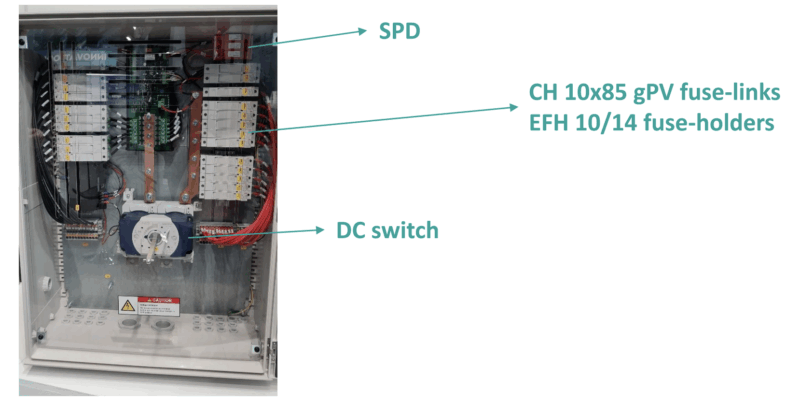

CH gPV: DC Combiner box

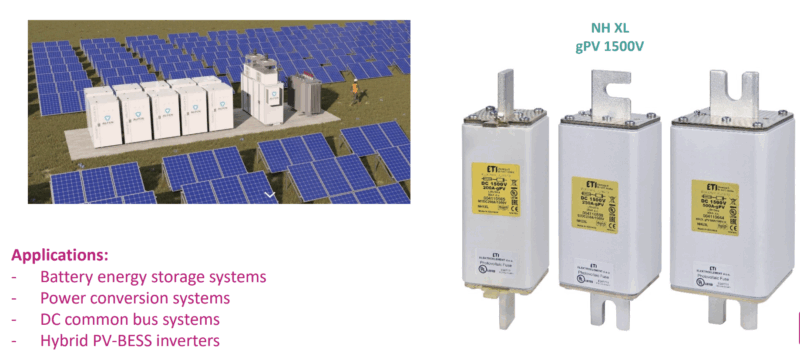

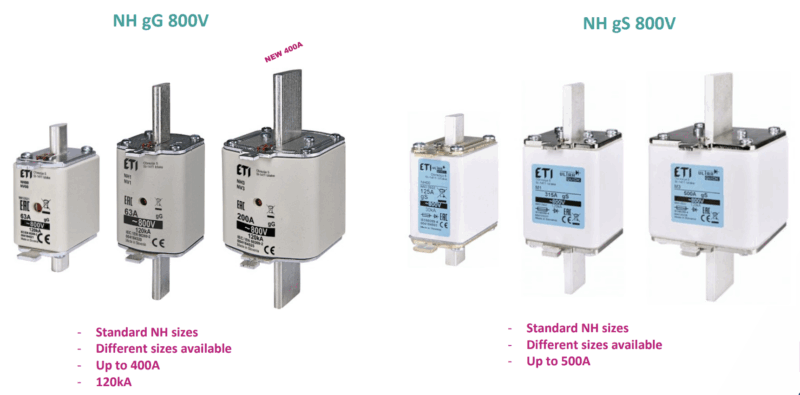

NH Fuse-links ( UL Certified )

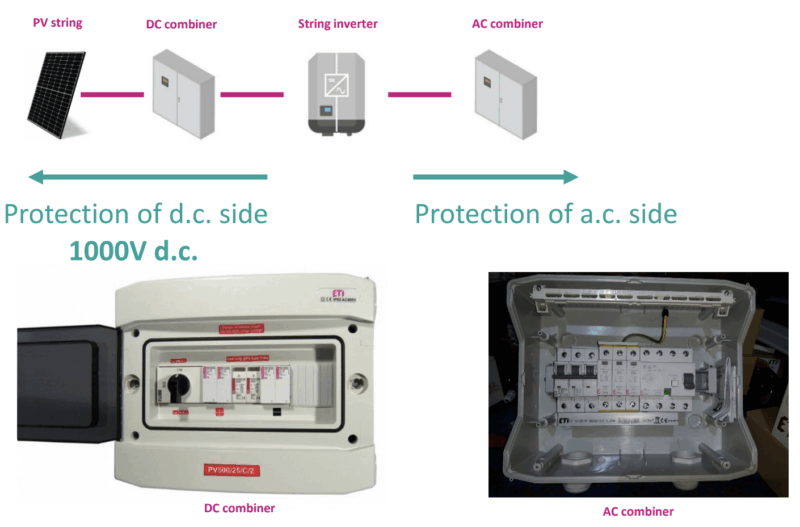

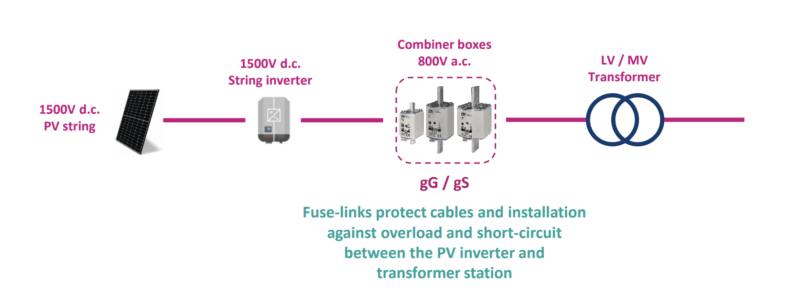

Photovoltaic: String inverter System

The main purpose of the protection on a.c. side is the protection of cables and installations between PV smart string inverter and the transformer station. Fuse-links have to be designed for uninterruptible operation in case of short-time overloads which could become a consequence of higher temperatures and the peak of power generation.

800V AC: Transformer substation

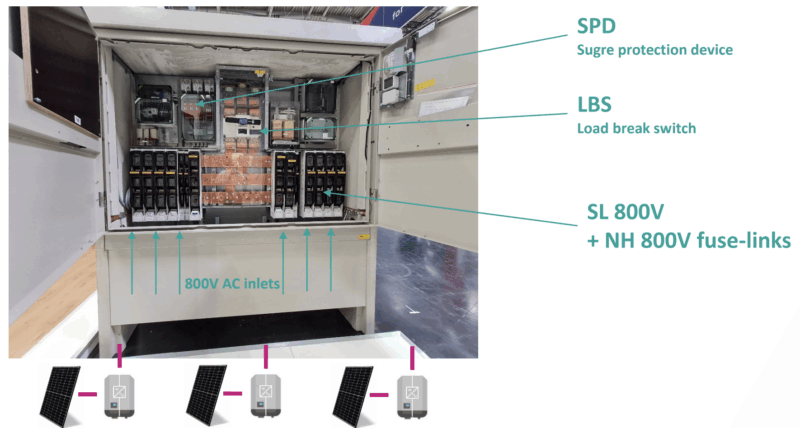

800V AC: Combiner box

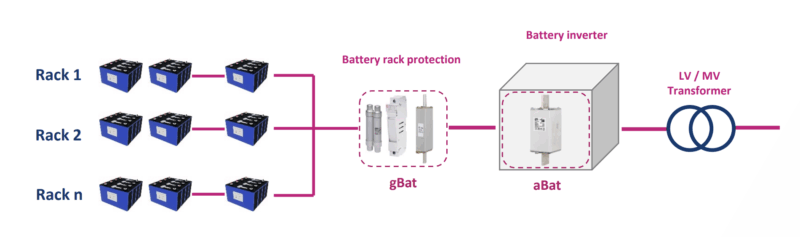

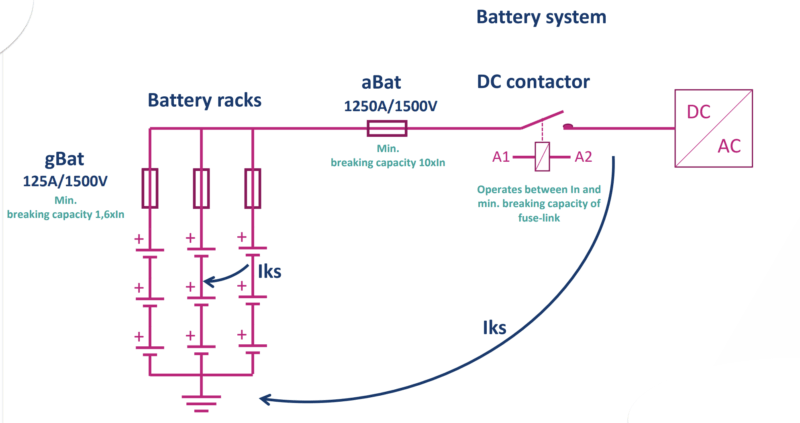

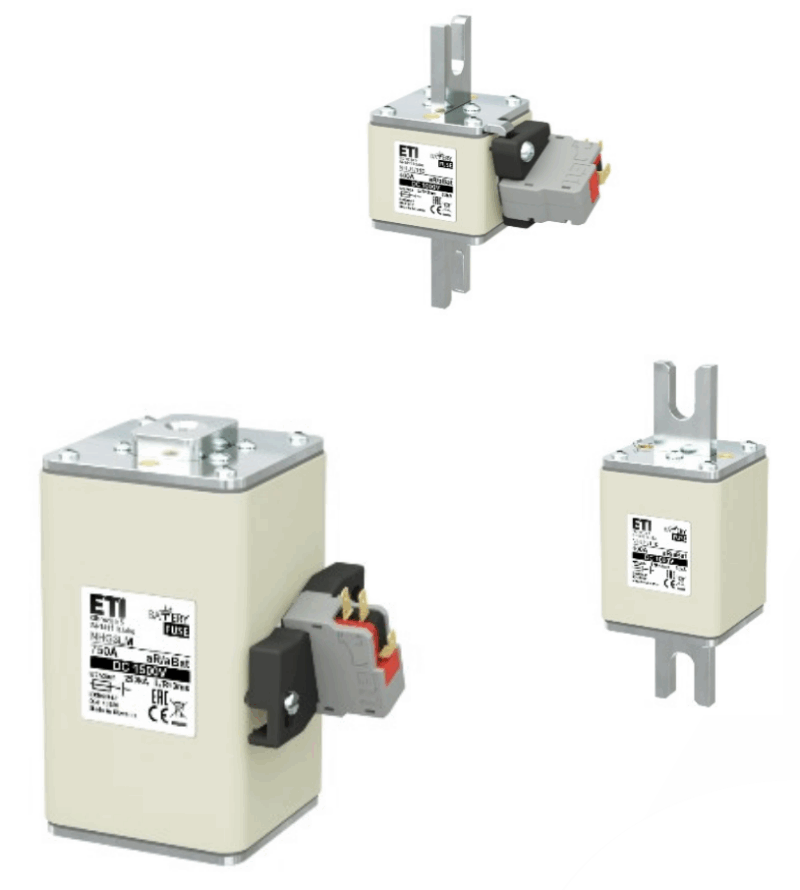

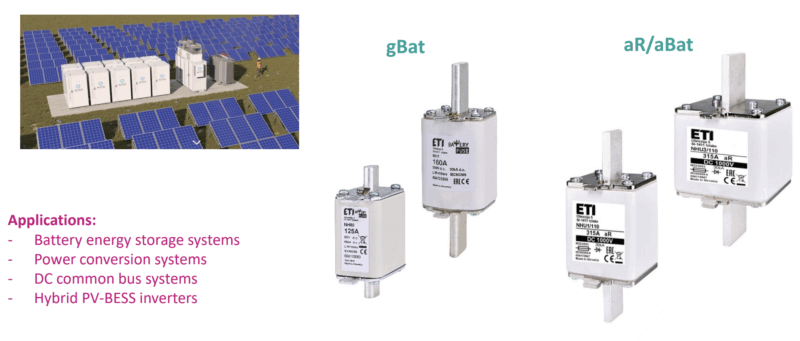

Battery Fuse

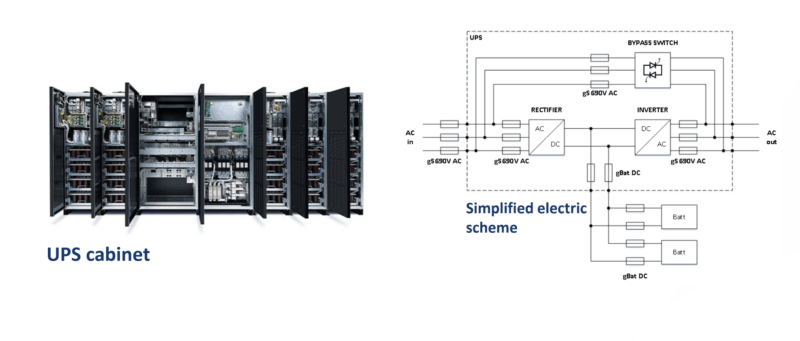

UPS application

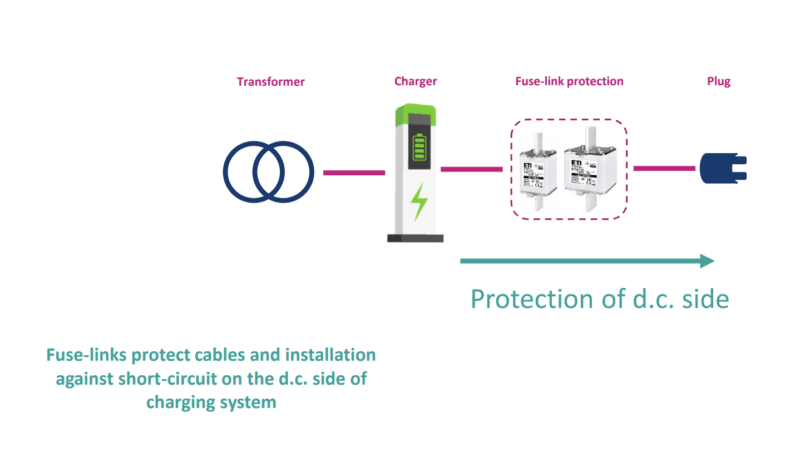

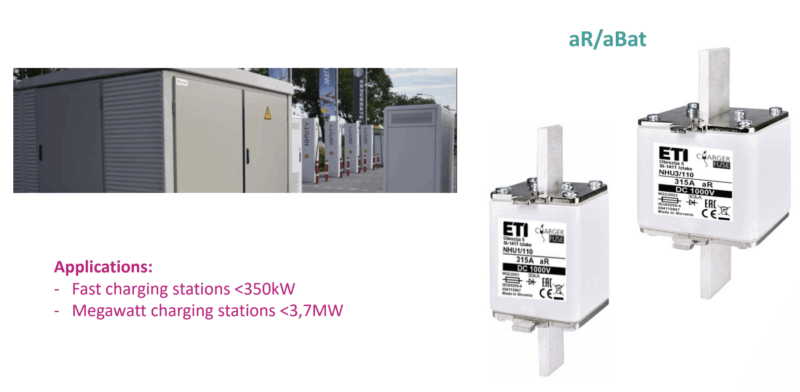

Charging station protection

NH RENEW

New era renewable fuse-links
