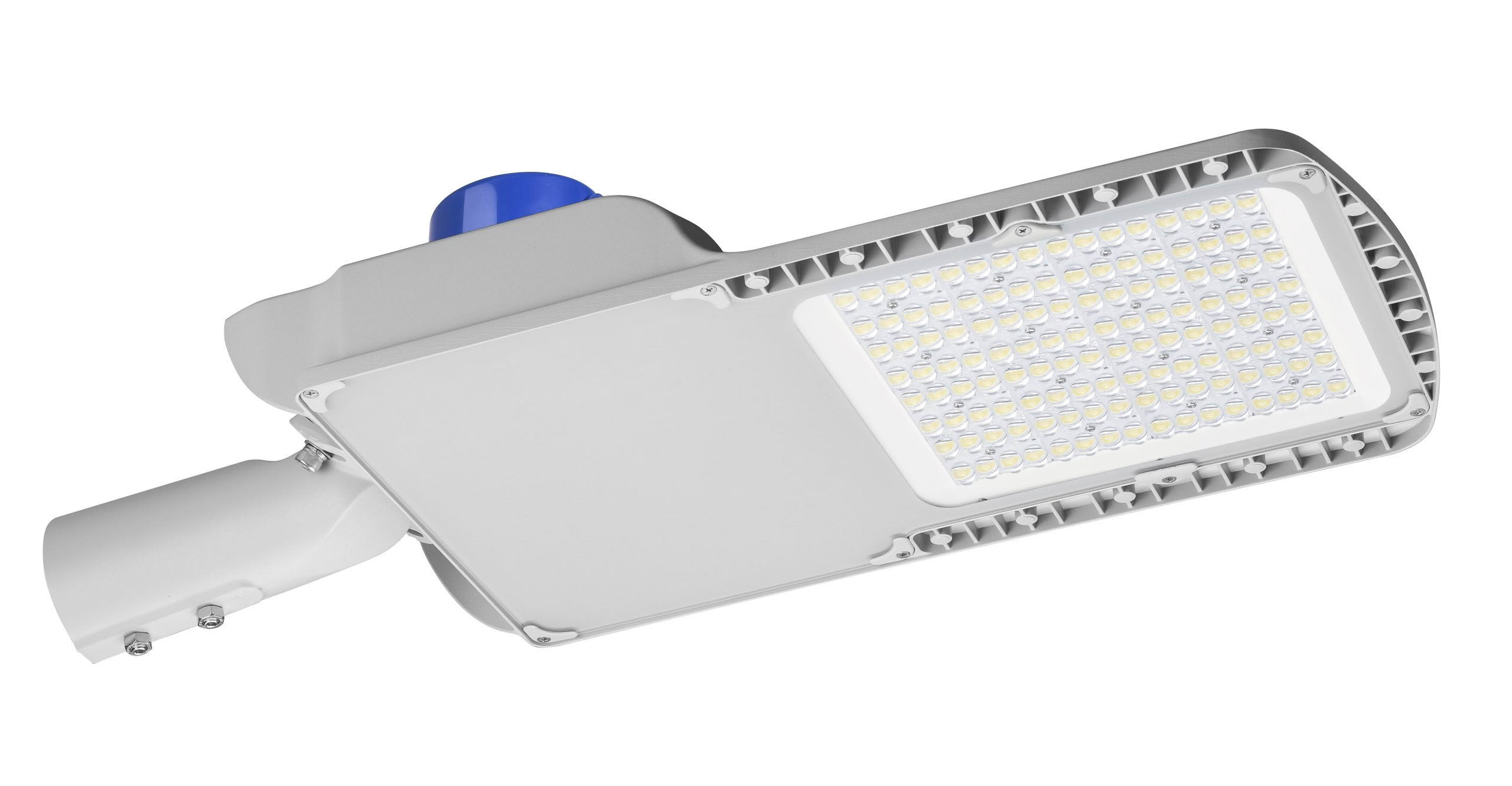

Mains Powered LED Street Lights (Eagle Series)
The Eagle Series LED street light is a smart and modern lighting solution designed for public lighting applications. Featuring a minimalist design and high system efficiency, the range delivers up to 170lm/W with reliable performance across a wide range of installations.
Product Features
- Smart and modern design, minimalist appearance
- Excellent heat dissipation design with ADC12 aluminium heat sink
- System lumens output up to 170lm/W
- Powered by Lumileds LUXEON / TYF / GUANGYOU 5050 LED
- Available driver brands including Mean Well, Inventronics, Philips, Sosen and Moso
- 3 pin, 5 pin, 7 pin NEMA socket with photocell sensor
- Photocell automatically switches on at 6LX and off at 50LX
- Optional 0–10V dimming or DALI control
- IK08 tempered glass with IK10 optical PC lens
- Support built-in 10kV / 20kV surge protection device (SPD)
- Adjustable bracket 0°–90° for horizontal or vertical installation
- 500 hours salt spray test for coating durability
- Cost-effective and efficient lighting solution
Specifications

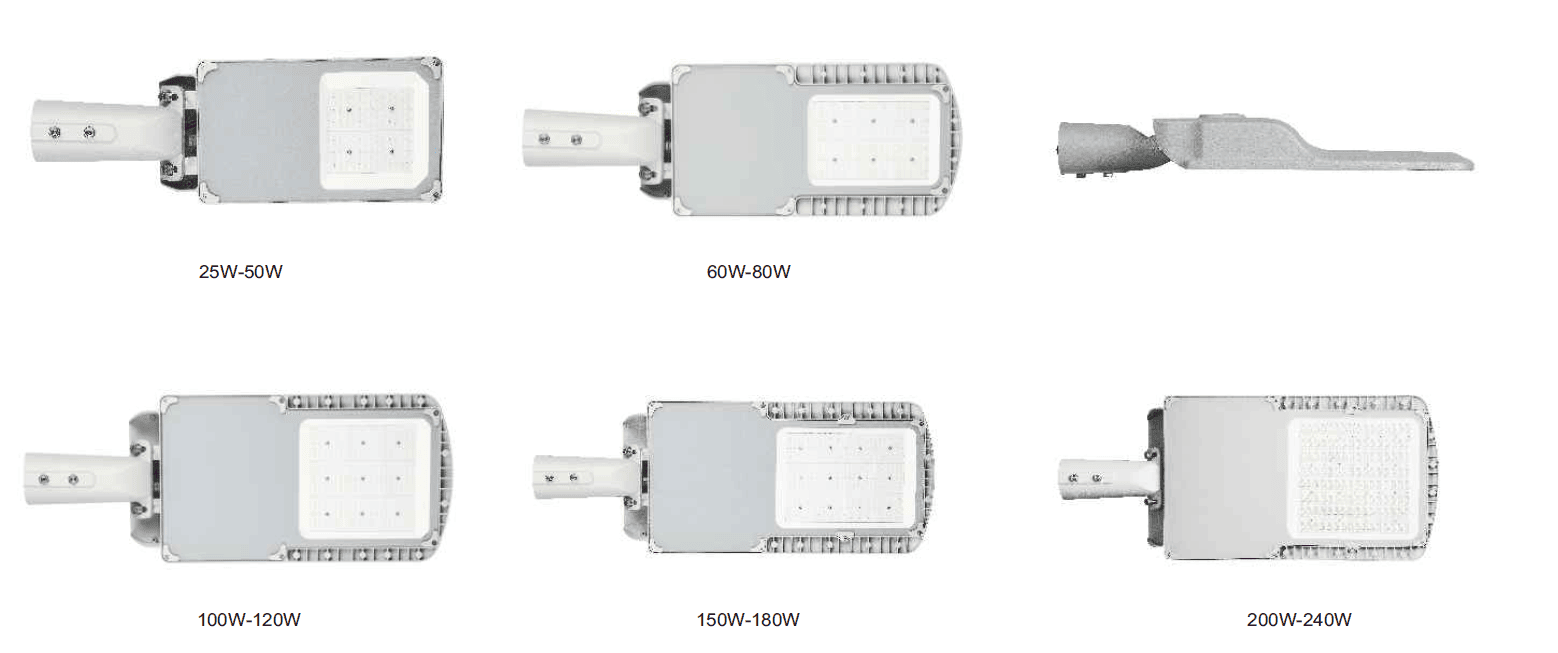

- Power Range – 25W to 240W
- Input Voltage – AC 100–277V
- Luminous Efficacy – up to 170lm/W
- CRI – >70Ra
- Colour Temperature – 2200K–6500K
- Power Factor – >0.95
- Beam Angle – Type II, Type III, Type IV, Type V
- Material – ADC12 aluminium + IK08 tempered glass + IK10 optical PC lens
- IP Rating – IP66
- Surge Protection – 10kV / 20kV SPD
- Operating Temperature – -40°C to +50°C
- Lifespan – ≥100,000 hours
Design & Construction
- Modular optical PC lens design improves lighting distribution efficiency
- Optional light distribution curves available
- High light transmittance lens with anti-ultraviolet protection
- Quick connector design for easier driver and SPD replacement
- High durability coating with multi-step painting process

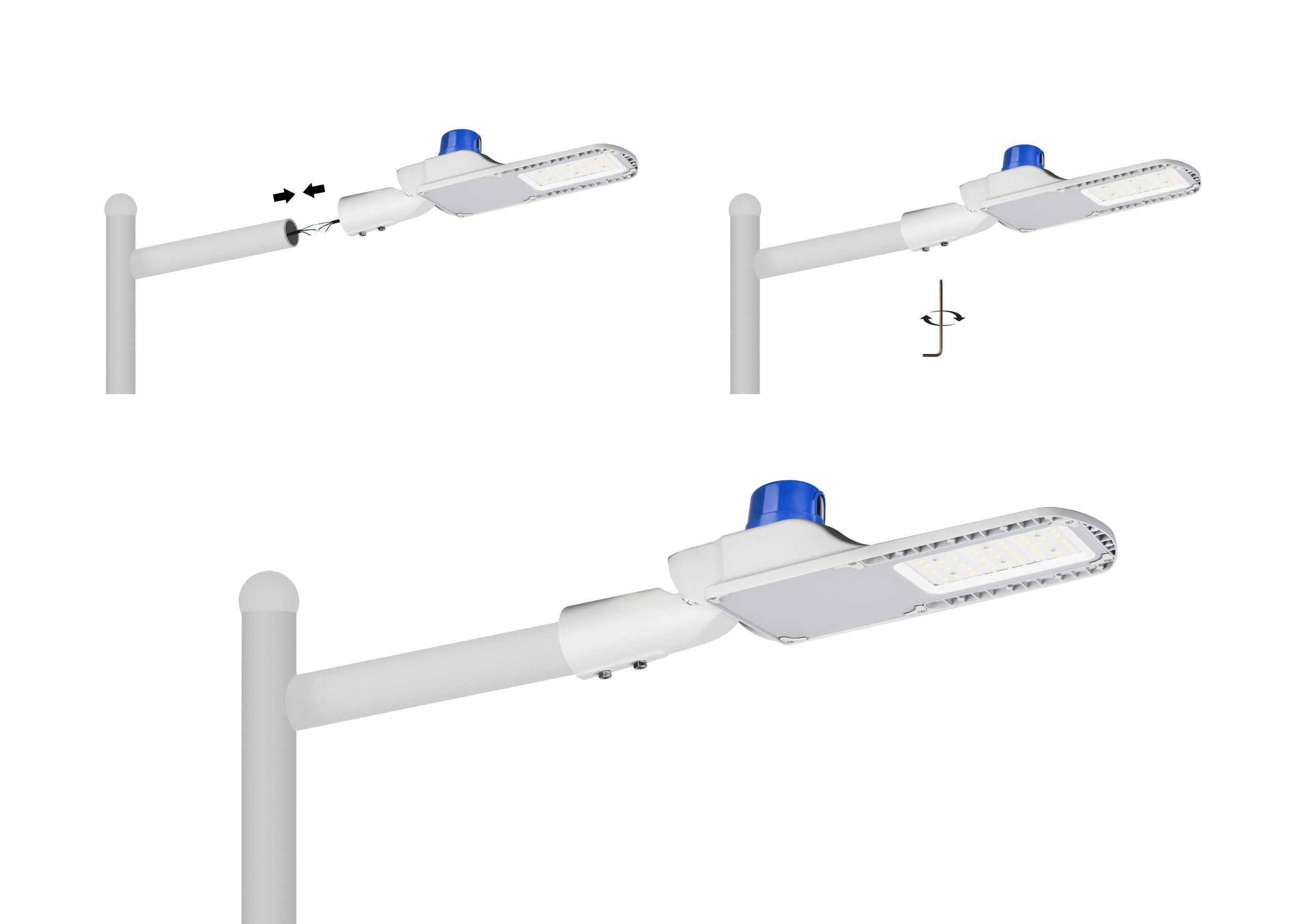

Installation
Installation should be carried out by a qualified electrician.
- Turn off power before installation
- Connect wiring correctly and ensure proper grounding
- Fasten the luminaire securely to the pole (tightening torque 6–8Nm)
- Check all connections before switching power on
Applications
Eagle Series LED street lights are widely used across a range of public and infrastructure environments:
- Main roads and motorways
- Urban and residential streets
- Industrial areas
- Parking areas
- Bridges
- Schools and public spaces
- Gardens and squares
- Private developments
