Solar Powered LED Street Lights (QH Series)

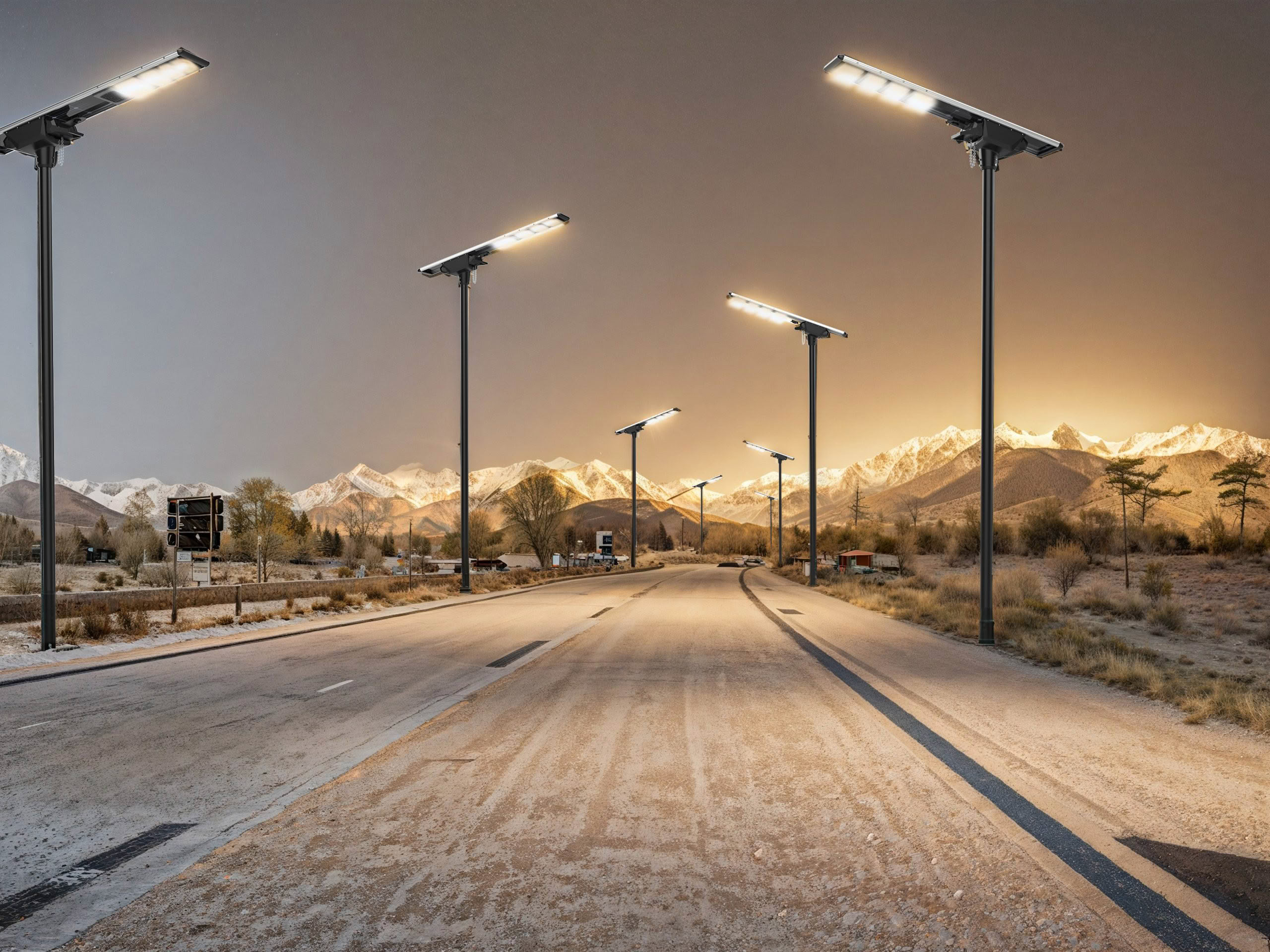

The QH Series integrated solar street light integrates solar panels, LED sources, controller, battery, human body induction, and housing. It is widely used in branch roads, streets, factory roads, parks, villages, mountainous and remote areas, lighting projects, courtyards, schools, squares and other places that require outdoor lighting.

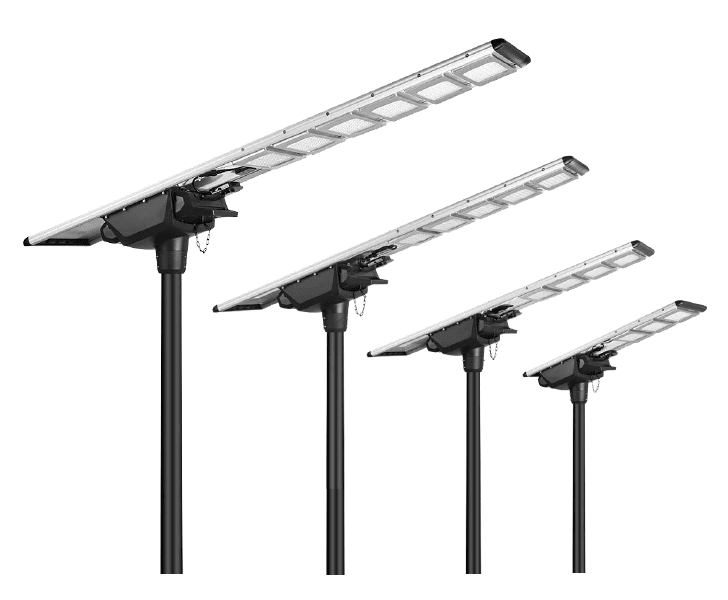

Product Advantages
- Designed by a professional industrial design team, integrating solar panels, LED sources, controller, battery, human body induction, and housing
- Adjustable LED module, suitable for road lighting in various terrains
- Intelligent power adjustment, automatic weather judgment, reasonable planning of discharge rules
- Intelligent charging and discharging management, soft and hard double protection of charging and discharging and intelligent equalization technology, battery cycles more than 2500 times
- Smart remote control, equipped with drone remote control, ultra-long remote control distance of 30 meters, can pass through obstacles, and can set four lighting modes at will
- High-efficiency LED chips can reach 220LM/W, which is more than twice the average brightness of ordinary LED light sources, with a luminous angle of 140 degrees, and a wider irradiation area
- The battery box adopts a pull-out modular design, which is easy to install and disassemble, and it is very simple to replace the battery and controller
Specifications
- Models – LX-LD60W-QH, LX-LD80W-QH, LX-LD100W-QH, LX-LD120W-QH, LX-LD150W-QH, LX-LD200W-QH, LX-LD250W-QH
- Mono Solar Panel – 18V 80W, 18V 100W, 18V 130W, 18V 140W, 18V 150W, 36V 200W, 36V 250W
- Battery – LiFePO4 battery
- LED – Bridgelux 5050
- Color Temperature – 2700K-6500K, RA>70
- Brightness – 190LM/W
- Working Time – 12-15hours, 5-7 cloudy/rainy days
- Charging Time – 6-8hours
- Mounting Caliber – 70-76mm (suggestion)
- Working Temperature – -25℃ to +65℃
- Body Sensor – 160°, >9m, activated by customer’s need
- Battery Power Indicators – 100%-75%-50%-25%
- Fault Indicator – RED/BLUE/GREEN
- IP Rating / IK Class – IP66 / IK10
- Warranty – 3 years / 5 years
Product Details

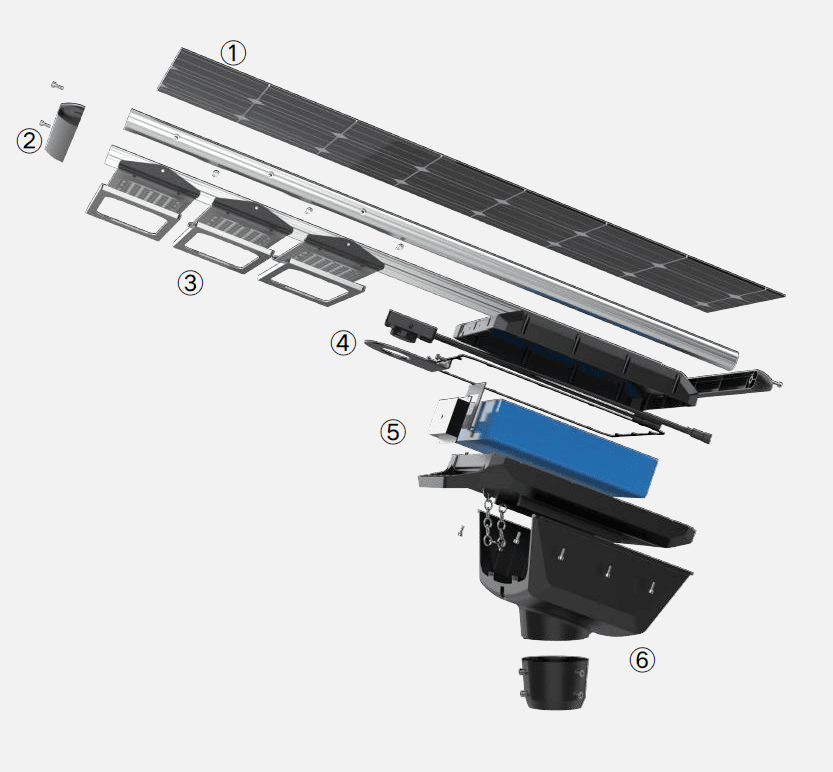

QH Series integrated solar street lights include the following main components:
- Solar Panel
- Lamp Shell
- LED Light Board + Optical Lens
- Controller
- Battery Pack + Battery Box
- Fixed Bracket
Controller & Remote Control
The Controller of QH series adopts extremely simplified design, integrated controller, microwave induction, and magnetic switch in one, which makes the operation simple, the maintenance simple, and the stability is higher.
- Magnet power switch
- Battery power indicators
- Status indicator LEDs
- 433 remote control
- Four lighting modes are available
Installation & Maintenance
- Install the controller
- Install the bracket
- Secure the lamp body
- Install the lamp pole
- Secure the battery box
- Wiring

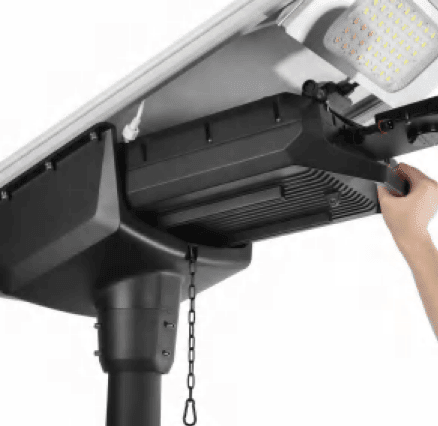

QH series adopts a new pull-out battery box design. There is no need to screw the battery box, and it can be installed by just pushing it, which greatly reduces the installation and maintenance costs.

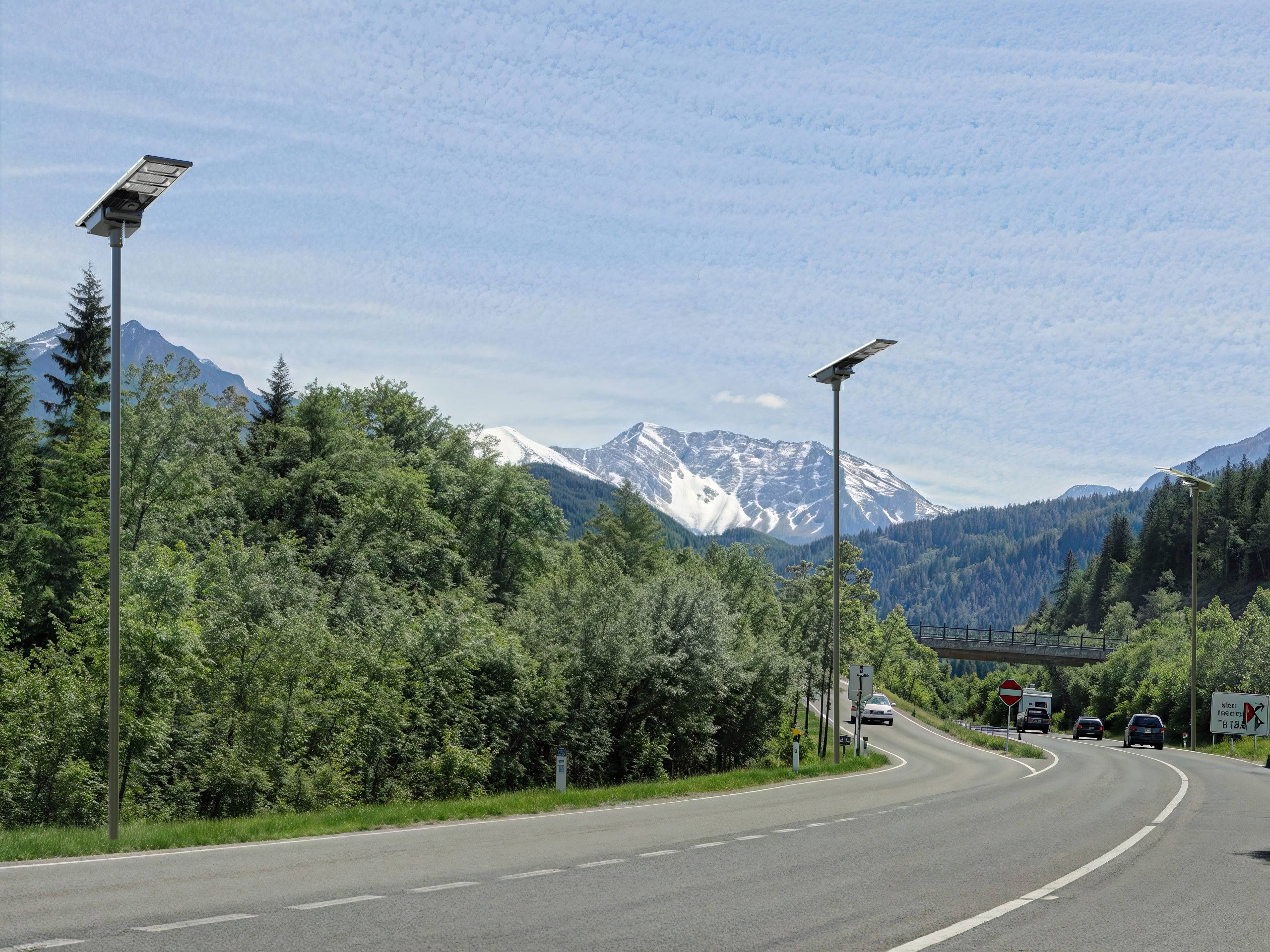

Applications
Widely used in branch roads, streets, and factory roads, parks, villages, mountainous and remote areas, lighting projects, courtyards, schools, squares and other places that require outdoor lighting.
- City roads
- Streets
- Squares
- Parks
- Rural roads
- Parking lots
- Schools
- Gardens
- Remote areas
